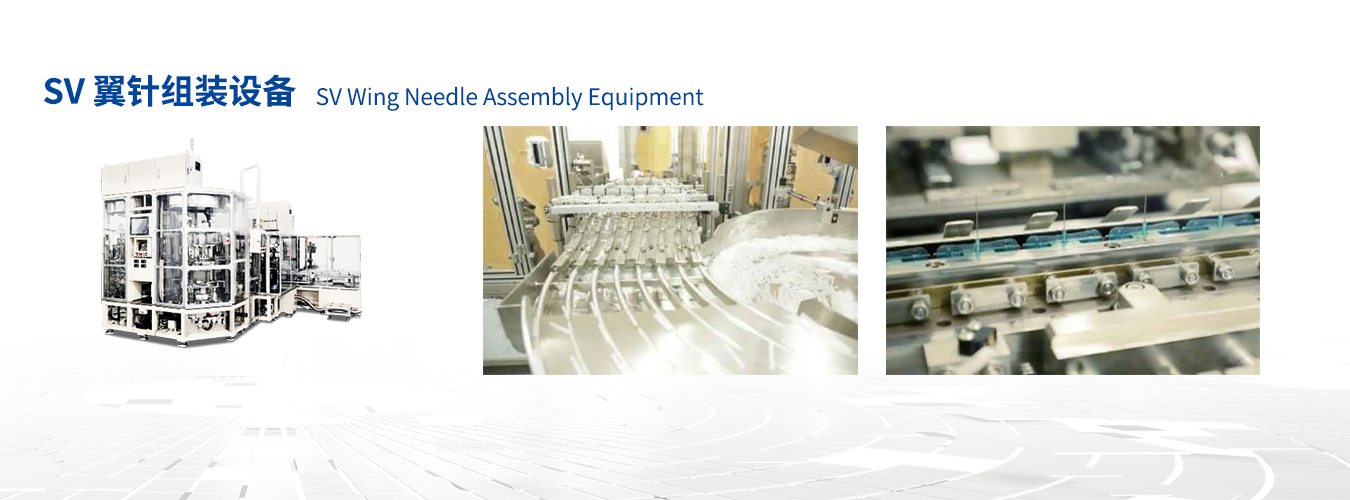

SV 翼针组装设备
优点介绍
设备介绍：全自动SV翼针组装设备，6品种条码扫描切换18G/19G/21G/22G/23G/25G
工艺流程：自动组装，CCD检查，硅油涂布，吹气，UV剂涂布及固化设备速度：6880只/小时
入料方式：振动盘8轨道同时入料
良品率：≥98%，性能嫁动率：≥96%
电压要求：220V/380V（三相）空压：6kg/c㎡
设备尺寸：6500*6000*1900mm
Equipment introduction: Fully automatic SV wing needle assembly equipment, 6 types of barcode scanning switching 18G/19G/21G/22G/23G/25G
Process flow: automatic assembly, CCD inspection, silicone oil coating, blowing, UV agent coating and curing
Equipment speed: 6880 pieces/hour
Feeding method: vibrating disc with 8 tracks simultaneously feeding
Yield rate: ≥ 98%, performance transfer rate: ≥ 96%
Voltage requirement: 220V/380V (three-phase) Air pressure: 6kg/c ㎡
Equipment size: 6500 * 6000 * 1900mm
